The Upper Falls Fireflies
June 2014
The idea came to me when the Feast of the
Falls team was looking for ways
to make the Feast an even more memorable event with community members adding
their own little flair. We wanted some
form of entertainment after the meal, and it seemed to me that giving people
something to see that you just can’t see every day would fit the bill quite
nicely. I hatched a plan to put together
a wireless network of modules where each one controlled a number of lights
programmed in some way to create a unique visual effect. The original thought (and I might still make
this happen) is to float the modules and create a lit-up river with life-like
luminescent creatures. For this I had to
make them submersible, but that limitation proved too risky once I had the
first few modules built. In the end the
modules hung in trees, and the lights dangled like little droplets to create
the eventual firefly effect.
Following the original idea of submersible wireless modules,
I came up with a fairly compact design based on a wireless device (a Zigbee transceiver), which is basically a general purpose
communication device that can setup and maintain a connection to an ad-hoc wireless
mesh network automatically. I set it up
to receive commands that turn on and off pins on the device to light up several
bright LEDs. Without getting into the
details, the parts required to do this involved a custom designed circuit board
and a fairly capable battery that could all fit into a compact container.
Each POD controls three green/yellow LED sets, to simulate
three different fireflies attached to it.
The device is powered by a camera battery designed for long life, cold
temperature (in case it was submerged in water), and intermittent high power
flashing. These devices could last days
to weeks depending on the flash pattern.

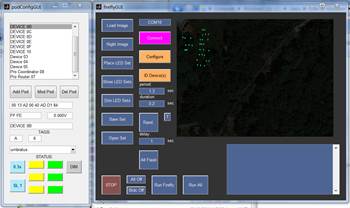

To control the set of devices, I programmed the interface
using a fairly powerful software package by a local, yet world renowned
company, The MathWorks. Their Matlab
software is generally used for mathematics, algorithms, instrument control,
engineering, and many other applications.
It might not have been the first logical choice for this project, but I
have been using it at work, and it has a pretty easy graphical interface tool
that made getting this up and running fairly quick and easy.
The most basic function besides figuring out and managing
what pods are awake and connected, is running a firefly simulation. This means that I wanted to replicate the
blink pattern from a real life firefly.
Fortunately, the Museum of Science has this
firefly watch site with data on blink patterns of
known species. I programmed in the
option to select a species, and the software sends out the blink pattern to any
firefly pod selected, including multiple fireflies at the same time.
The operation at the 2014 Feast of the Falls
was a success for the most part, although I am still working out some
kinks. It turned out to be a subtle
background show with more attention brought to it as the night drew to a close
and the surrounding woods became dark.
At one point, I took manual control and essentially made one set of
fireflies ‘dance’ to the rhythm of our singing Alderman Ted Hess-Mahan. One of the fireflies can be seen in the
background here.
A total of eleven pods with three lights apiece were
completed in time for the Feast. We set
them up along the north and south sides of the long dining table.
And then there were squirrels. A day or so after the event, because of a
business trip, I brought all of the pods down from the tree branches I placed
them in. One cable appeared to have been
tasted by one of those lovely grey
furry friends.
I hope to have more than twenty Pods for the complete set,
for a total of sixty individually controlled lights. More light shows are in the works, and you
never really know when or where the Upper Falls Fireflies might show up!
